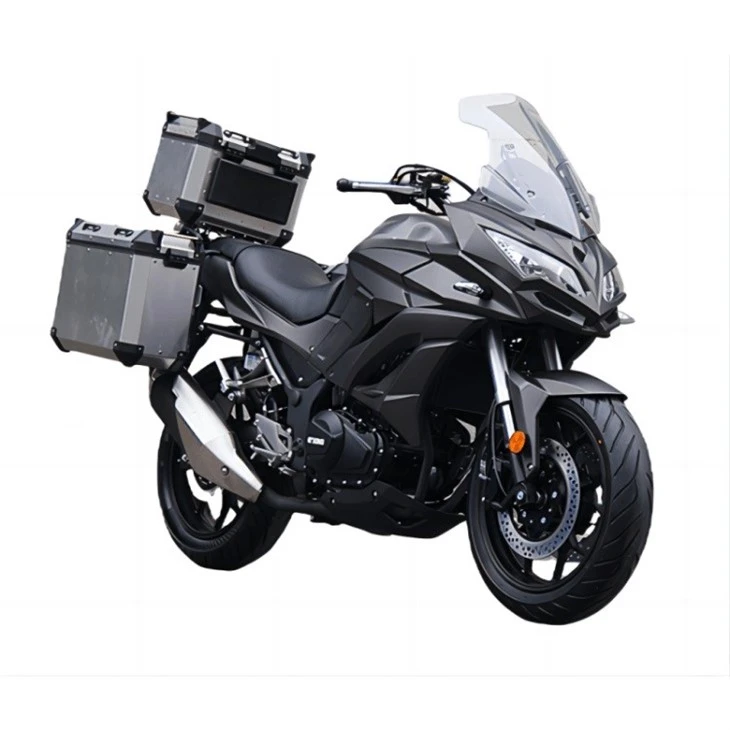

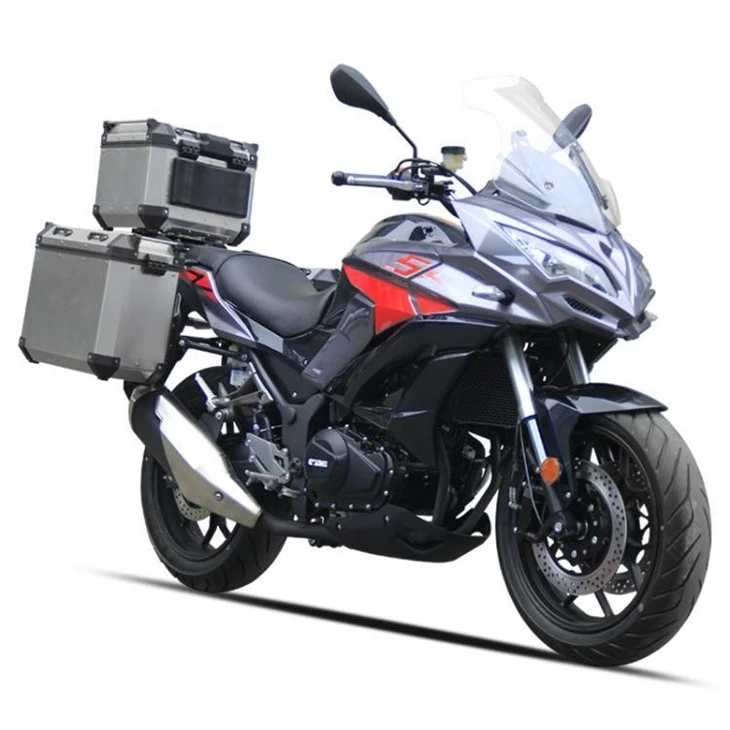

Cruise Sports Motorcycle

Model Size：

2130*800*1320mm

Axis pitch：

1410mm

Ground clearance：

175mm

Maximum speed：

151km/h

Engine model:

255MM-P

Structure of engine：

in-line double cylinder

Stroke：

Asynchronous four stroke

Maximum power：

22Kw/8300rpm

Maximum torque ：

25N.m/6200rpm

Mode of cooling：

Water cooled

Displacement ：

255cc

Precise displacement ：

257.5ml

Valve valve structure：

SOHC four valves

Cylinder diameter & stroke ：

57.3X50mm

Oil supply mode：

Fuel injection

Ratio of compression：

11.5:1.

Mode of ignition：

EFI

Start up mode：

Electric

ROZ：

No. 92

Effluent standard：

The Ⅳ

Lubrication method:

Pressure & splash

Transmission type：

6 speed international gear

Type of clutch：

Manual wet multi-chip

Mode of transmission：

Chain drive

Balance shaft：

Built in Balance shaft

Braking mode：

Hydraulic disc brake

Form of tire：

Vacuum tire (semi-hot melt)

Tire Specifications：

120/70-17; 150/70-17

Hub form：

Aluminium alloy

Hub specifications：

3.50-17; 4.50-17

Lighting form：

LED

Suspension system：

Inverted

Central subtraction

Tank capacity：

17L

ECO consumption：

3.4L/100km

Battery Specifications：

12V9AH

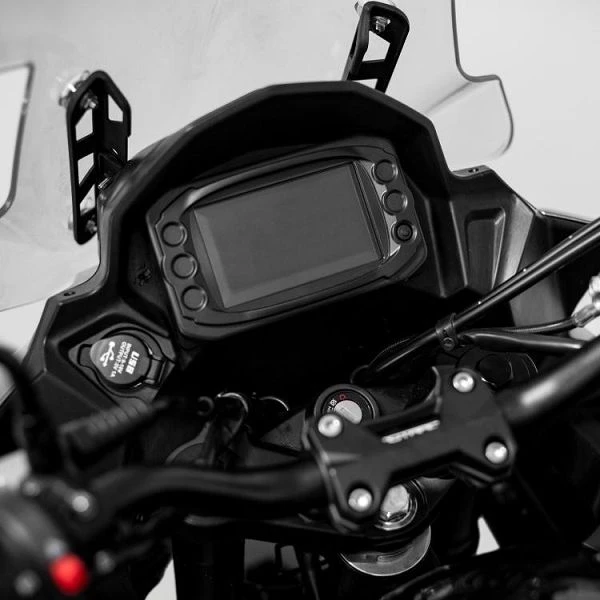

Form of instrument：

TFT color screen

Rated load：

150kg

Net weight：

177kg

Gross weight：

210kg

Method of Packing：

Iron frame and carton

Package Size：

2100*680*1150mm

Loading quantity：

20GP：14 sets

40HQ：34 sets
