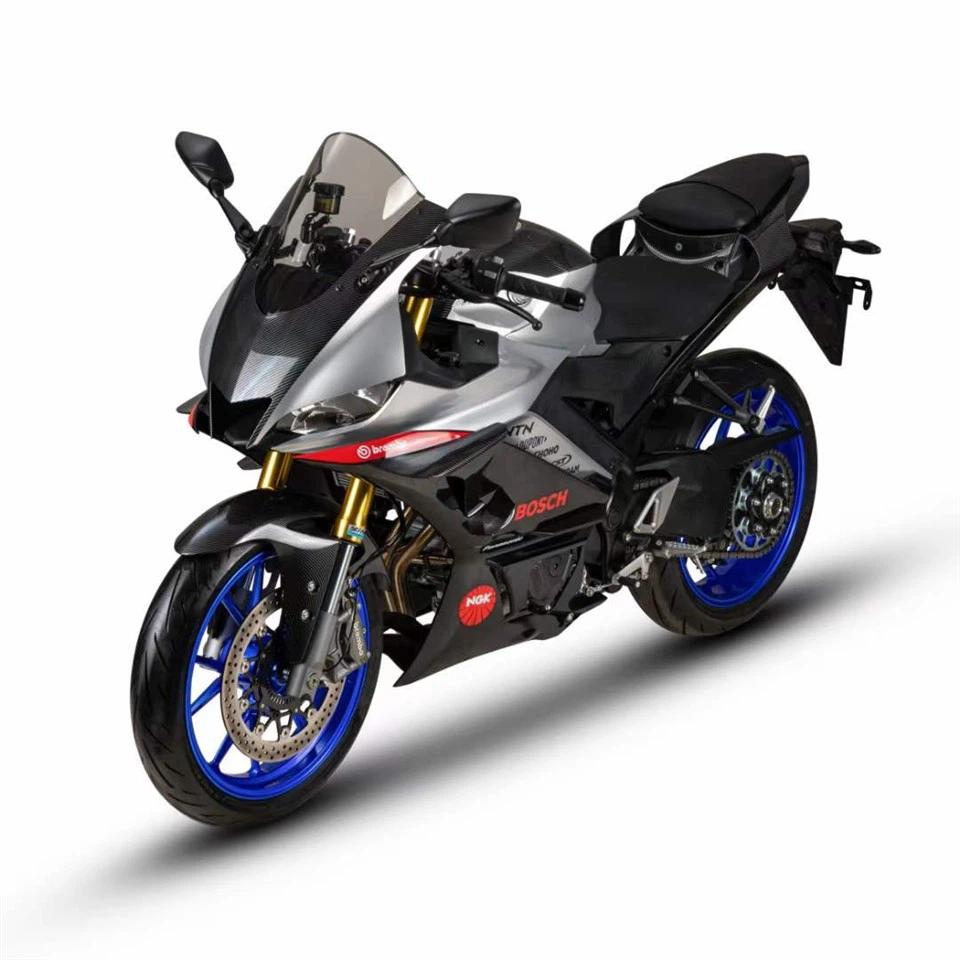

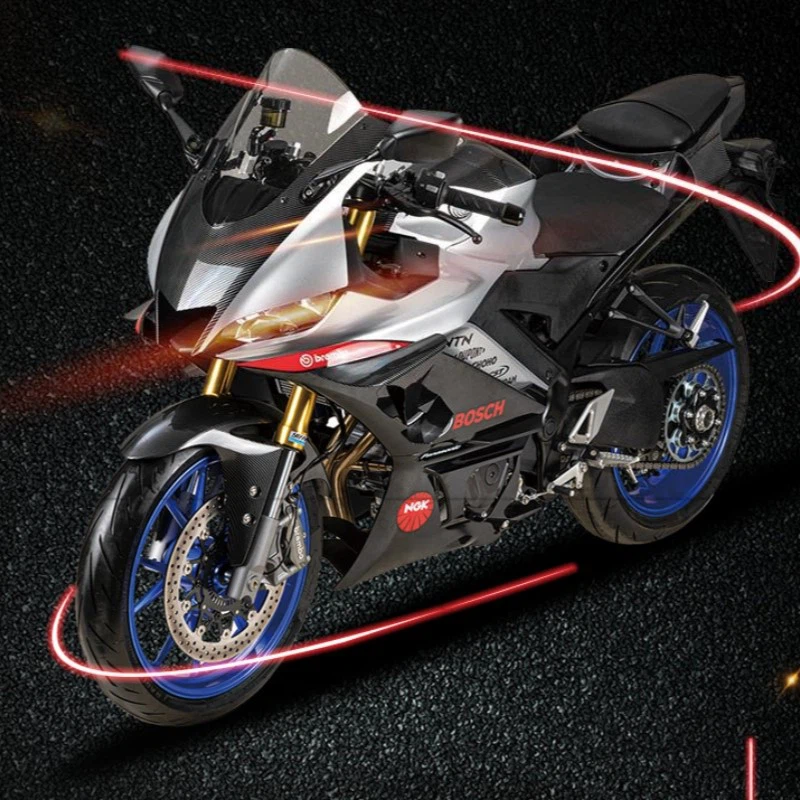

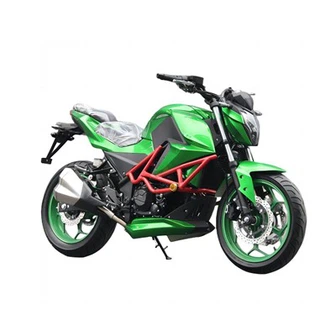

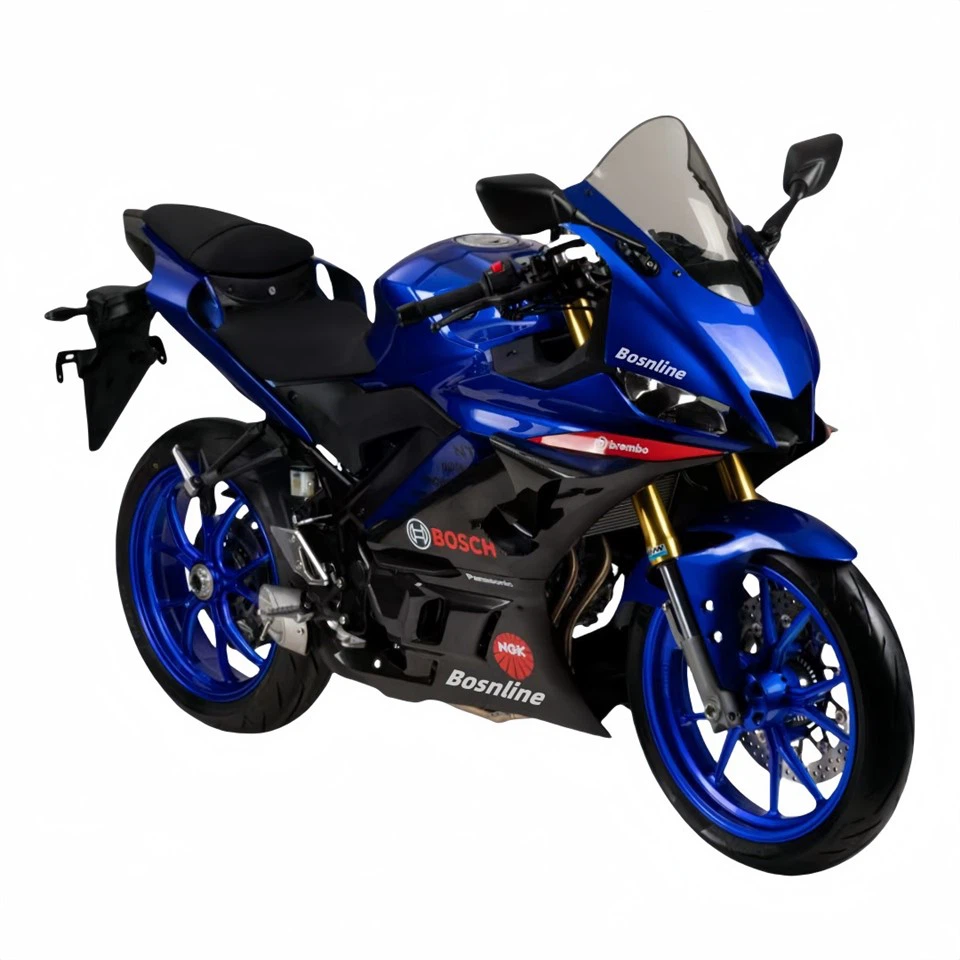

Racing Motorcycle

MODEL PARAMETERS

350cc WATER COOLED ENGINE PARAMETERS

PROJECT

PARAMETERS

PROJECT

PARAMETERS

Model Size：

2100*730*1200mm

Manufacture：

This company

Axis pitch：

1380mm

Engine model:

268MN

Ground clearance：

160mm

Structure of engine：

In-line double cylinder

Maximum speed：

160km/h

Stroke：

Four stroke

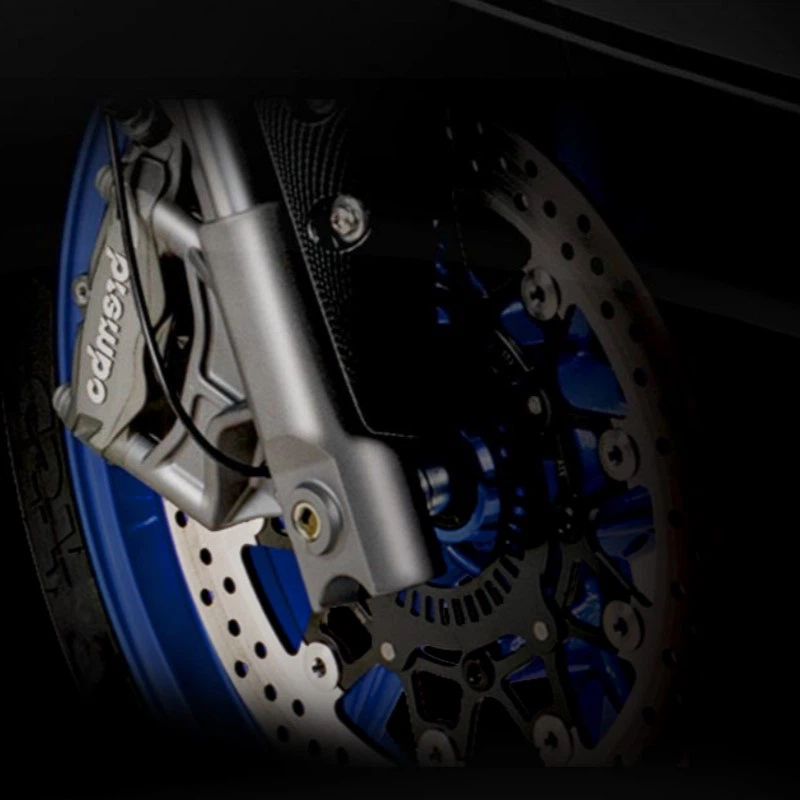

Braking mode：

Hydraulic disc brake

Maximum power：

30.5Kw/8300rpm

Form of tire：

Vacuum tire

Maximum torque ：

29N.m/6200rpm

Tire Specifications：

110/70-17; 150/70-17

Mode of cooling：

Water cooled

Hub form：

Aluminium alloy

Displacement ：

350cc

Hub specifications：

3.50-17; 4.50-17

Precise displacement ：

322ml

Lighting form：

LED

Valve valve structure：

DOHC

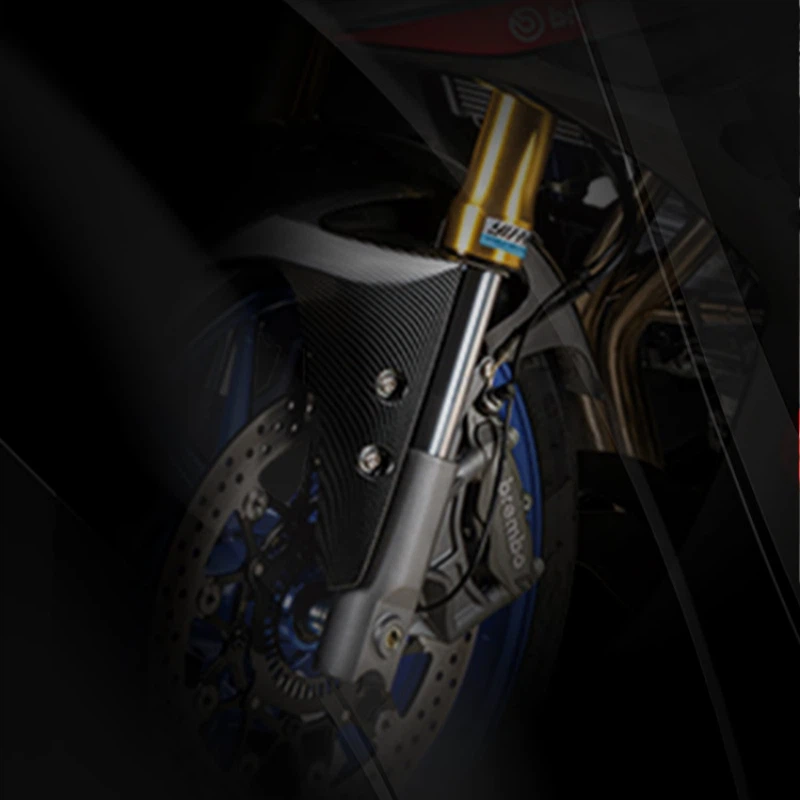

Suspension system：

Fr：Positive shock absorption

Cylinder diameter & stroke ：

68X42.2mm

Rr：central shock absorption

Oil supply mode：

Fuel injection

Tank capacity：

14L

Ratio of compression：

11.2:1.

ECO consumption：

3.2L/100km

Mode of ignition：

EFI

Battery Specifications：

12V7AH

Start up mode：

Electric

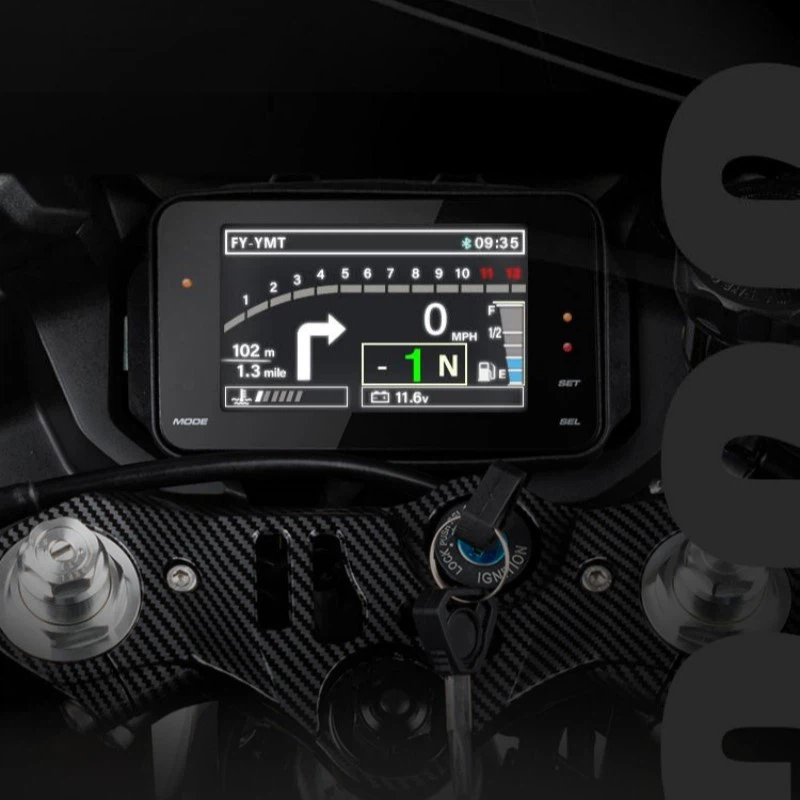

Form of instrument：

LCD

ROZ：

No. 95

Rated load：

150kg

Effluent standard：

The Ⅳ

Net weight：

155kg

Lubrication method:

Pressure & splash

Gross weight：

285kg

Transmission type：

6 speed international gear

Method of Packing：

Iron frame and carton

Type of clutch：

Manual Oil bath multi-chip

Package Size：

1950*570*860mm

Mode of transmission：

Chain drive

Loading quantity：

20GP ：24 sets

Balance shaft：

Built in Balance shaft

40HQ：72 sets

Net weight：

40.9kg
